Products

DESCRIPTION

• Overview
• Product Description
• Company Profile

Overview

Basic Info.

Model NO.	1
Source	Artificial Abrasives
Particle Size	Abrasive
Hardness	6 - 7 Mohs
Use	Sand Blasting/Waterjet Cutting
Magnetism	Weakly Magnetic
Melting Point	1340ºC
Size	12-120mesh
Sio2	36-40%
Al2O3	20-24%
Fe2o3	4-6%
TiO2	0-0.5%
MGO	8-13%
Sample	Sample Provided

Product Description

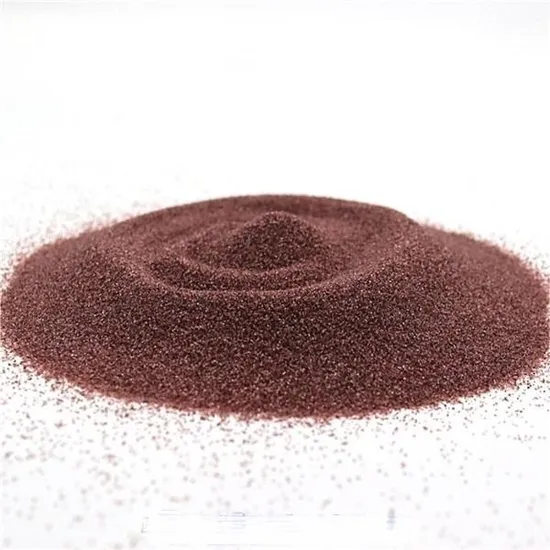

The best abrasive for water jet cutting machines is the red garnet, thanks to a unique series of features such as: hardness, density, friability and particle shape, that maximize the cutting properties of water jet machines.

A water hose sprays the water outdoor in a powerful manner, and if you add more pressure, the water force increases significantly. Same principle applies to water jet cutting machines: the water is shot through a narrow hole at very high pressure, ensuring water with a significant power to cut into the substrate. Mix the water with a hard abrasive like red garnet and the cutting force increases exponentially, being able to cut with extreme precision, almost any type of material.

DX BLAST Co., Ltd. (JX Blasting), with 30 years development, is a professional manufacturer of shot blasting machines and shot peening machines. DX BLAST, distribution network consists of sales agents from many countries as Poland. Mexico. UAE. Saudi Arabia. Malaysia, Vietnam. Philippines, Pakistan, Indonesia

FAQ

Product Description

Advantage	Application Industry
1 Hardness. Water jet cutting needs an optimal balance between the cutting force and the wear of the cutting machine parts. 2 Density. An abrasive that is too light will not cut the material and a material that is too heavy will not accelerate to the maximum velocity, slowing down the cutting speed. Red garnet is almost four times heavier than the water; 3 Friability. Red garnet with its semi-friable nature that makes it fracture in angular particles with sharp edges when passing through the nozzle, provides superior cutting speed than any other abrasive material; 4 Particle shape. It has been found that the angular shape with multiple sharp edges like the shape of red garnet, is the most suitable for high cutting speeds.	(1)Steel structure, hull, bridges and other sand-blasting; (2) Metal, stone, glass and other water jet cutting; (3) Chemical, petroleum, pharmaceutical, water treatment filters media; (4) Polishing marble, optical lenses, glassware, leather and other materials; (5) Wheel, Whetstone, emery cloth, sandpaper raw materials; (6) Motorways, runways, wear rubber, non-slip paint and other wear-resistant materials; (7) Its widely used in the construction industry in the field of high-grade lacquer interior wall decoration elegant temperament.

Chemical Element	Content	Physical Characteristics	Typical
Al2 O3	16.72-18.06%	Specific Gravity	4.0-4.1/cm3
Fe2 O3	27.95-29.5%	Mohs Hardness	7.5+
Si O2	37.44-37.77%	Acid Solubility (HCL)	<1.0%
Mg O	4.75-4.88%	Bulk density	1.8-1.9 g/cm3
Ca O	5.0-9.48%	Chloride	10-15ppm(25ppm max)
Ti O2	2.7-2.9%	Conductivity	25 ms/m
P2 O5	0.05%	Melting point	1300ºC

Company Profile

Q:How to choose blast machine type? A:According to work-piece size & material and productivity Q:What kind of abrasive for shot blasting machine ? A: steel shot, steel grit , cut wire shot, stainless steel shot, etc. Q:Quality warranty? A:1 year and please find our agent in your local ,they would supply long-term after-sales service . Q:Is foundation pit essential? A:Up to machine size and workshop Q:How many workers to operate the machine? A:1 Operator Q:Install assistance? A: Installation tool and experience workers for operation training Q:After sale service? A:Full stock for spare parts, regular after sale service by local agent.
