DESCRIPTION

Basic Info.

Model NO.	CTY*088
Application	Metal Parts
Function	Surface Finish
Source	Natural Abrasives
Particle Size	Abrasive
Hardness	Superabrasive
Guarantee	Canbe Inspection at Tianjin Port Before Shipping
Superiority	Have Our Own Factory / Plant
Certificate	ISO9001:2015, SGS , MSDS
Sample Free	Within 500g
Usage	Sand Blasting, Water Cutting
Chloride	<25ppm
Mohs Hardness	7.5 +
Transport Package	25kg PVC Bags+1mt Big Bag or as Customers′requeste
Specification	10/20# 20/40# 30/60# 60/90# 60# 80#
Trademark	Swt
Origin	Dengfeng City, China
HS Code	2513200000
Production Capacity	1000 Tons Per Month

Product Description

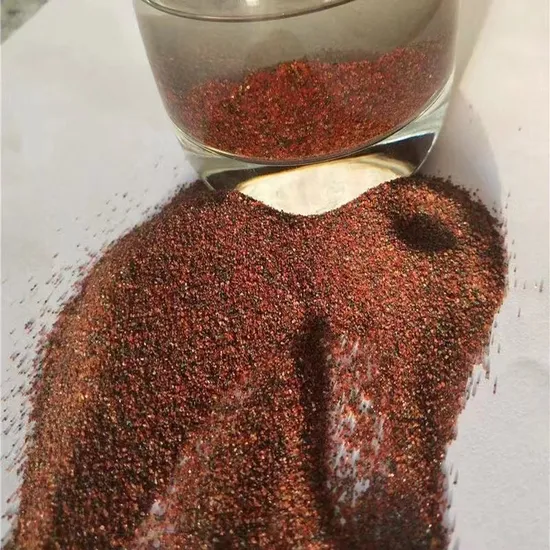

7.8 Hardness 80 Mesh Garnet Sand For Waterjet Cutting

Garnet Sand , derived from mined Almandite and Andradite mineral deposits, is a semi-precious stone.Once extracted, it is processed and then screened to the desired grade. The combination of the high density and physical properties make Garnet nature's most highly efficient, effective and safe abrasive for both wet and dry blasting applications

Specification

• High grade products with good hardness and roughness;
• Favorble price with reputable manufacture
• Better payments together with quick delivery time
• Durability : can be recycled many time

Chemical composition

SiO2: 36-40% Al2O3:20-24% Fe2O3: 4-6%

TiO2: 0.5% MgO: 8-13% FeO: 22-24%

CaO: 6-9% MnO: 0.5%

Physical Index

• Color: Red brown or pink ;
• Melting point: 1300°c
• Mohs hardness: 7.5-8.0
• Specific gravity: 3.9-4.1g/cm3

Size Available

• 8/12 12/20 20/40 30-60mesh,80mesh,100mesh
• 24# 36# 46# 50# 60# 80# 100#
• Other special specification could be supplied as required.

Application

• Free grinding and polishing;
• Resin abrasives and coated abrasives;
• Sandblasting and surface preparation
• Water jet cutting and water filtration;

Physical Of Typical Size

Water jet-cutting garnet:

Mainly Application:
1.For glass, crystal, jade and other products.
2.For sandpaper and sponge; s urface preparation.
3.For free grinding and polishing. resin abrasives. coated abrasives.
4.For sandblasting. waterjet cutting.water filtration. stone washing.
5.for various of applications used on metal, brick, concrete and masonry.
6.For polishing of glass screen, single crystal silicon, optical lens, rust sand blasting.
7.For sandblasting abrasive media, it is mainly used in remove rust, paint and corrosion.

Packaging & Shipping
1.25kg woven bag,40 woven bags/jumbo bag.
2.25kg woven bag,40 woven bags/pallet
3.25kg paper bag,40 paper bags/pallet
4.25kg paper bag,40 paper bags/paper box
5. as client demand

Our Services
1.Our strong team provide you reliable service that make you feel purchasing is more easier 2. We ensure that we can supply capability with competitive price. 3. Work strictly to guarantee product quality, 4. Highest standard of integrity. Guarantee customer's benefit. 5. Supplying Pet Coke, Met coke, Foundry Coke, Carbon Raiser etc.

Advantages

1. Professional in abrasives & refractory materials since 19852. Strict quality control system and Certificate3. Reliable Pre-shipment Inspection4. Very Competitive price5. Advanced equipment and superior technology6. Various packing7. Rich materials source 8. Fast delivery 9. Very near Shanghai Port and Tianjin Port10. Superior service and Specialist team with quickest response 11. Different language service such as English, Russia, Spanish,Korea, Japanese, Portuguese and etc.

Mesh	MM	Percentage Retention - Typical(%)
-	-	8/12	12/25	20/40	30/60	80	100
8	2.360	0
12	1.700	0-3
14	1.400	10-21	0-1
18	1.000	70-85	12-25
20	0.850	0-7	30-45	0-5
30	0.600	0-3	30-50	50-70	0-5
40	0.425		3-11	10-20	15-30	0
50	0.300			0-10	40-60	15-30
60	0.250				10-25	20-30
80	0.180				5-10	20-50	0-10
100	0.150					5-10	20-40
120	0.125						40-60
140	0.106						5-

Product Name	Almandite Garnet / Garnet Sand
COLOUR	Red Coloured; Intensely Red; Red/Brown; Reddish pink; Reddish brown
SIZE	8/12 &12/25 &20/40 & 30/60 & 80# & 100# &120#;
APPLICATION	Sand blasting; Water & liquids filtration; Waterjet Cutting.
RAW MATERIAL	Rock garnet sand mined from 200 meters underground.
PRODUCTION PROCESS	Crushing→magnetic separation→washing →drying →screening
MINERALOGICAL COMPOSITION	Garnet (Almandite)	95% at least
	Ilmenite	1-2%
	Quartz	<0.5%
	Others	0.5%
CHEMICAL ANALYSIS	Silicon Dioxide (SiO2)	39.03%
	Ferric Oxide (Fe2O3)	24.62%
	Aluminium Oxide (Al2O3)	15.14%
	Calcium Oxide(CaO)	10% MAX
	Magnesium Oxide (MgO)	6%MAX
	TIO2	2%MAX
	MnO	1% MAX
PHYSICAL CHARACTERISTICS	Chloride	<25PPM
	Hardness (Mo's ale )	7.5 to 8
	PH	>7
	Conductivity	105 μS/cm
	Bulk density	2.34 g/cm3; 145 lb/ft3
	Specific gravity	4.10 g/cm3
	Grain shape	Sharp angular
