Overview

Basic Info.

Model NO.	garnet sand
Motive Force	Water Filtration
Style	Sharp Adges
Performance	Water Treatment
Certification	ISO 9001
Fe2o3	27.95-29.50%
Conductivity	Less Than 25 Micorsiemens Per Meter
Color	Red
Average Bulk	2.4G/Cm3
Mosisture Absorption	None Hygroscopic,Inert
Specific Weight	4.1g/cm3
Chloide Content	Less Than 25 Ppm
Free Flow	90% Minimum
Al2O3	16.72-18.06%
Durability	Very Good
Frcture	Sub-Conchoidal
Business Type	Manufacture
Approval	ISO9001
Report	SGS
Free Silican	None
Transport Package	25kg/Bag, Then 40 Bags/Ton Bag
Specification	20-40
Trademark	Honest Horse
Origin	China
HS Code	251320
Production Capacity	3000 Tons Per Month

Packaging & Delivery

Package Size95.00cm * 95.00cm * 80.00cm Package Gross Weight1004.000kg

Product Description

1.Garnet Sand Introduction

Our garnet sand 20-40# can be used as the bottom media of filter bed in water filtration of chemical industry ,petroleum ,pharmacy ,cleaning drinking water or waste .It is one of the most cost effective alternatives for water filtration beds to replace silica sand and gravel in water filtration ,Especially it can be applied in beneficiation of non-ferrous metals and oil drilling mud weighting agent, because it resets the filter bed more rapidly after the filter bed is back-flushed.

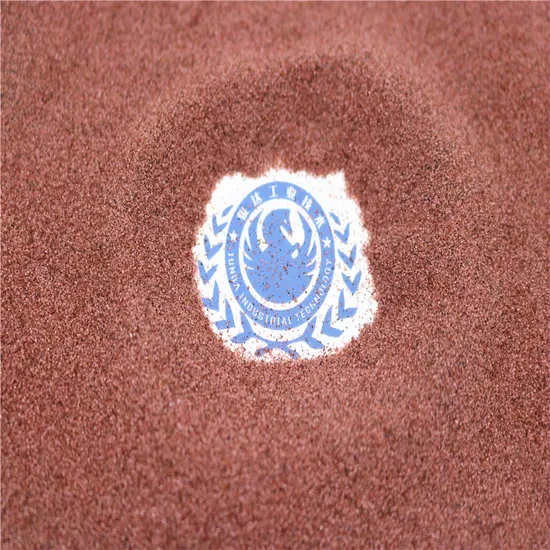

2.Garnet Sand Picture

HONEST HORSE filter sand is a hard rock garnet and is mined from an almandite garnet deposit. It is ideal for use as the water filtration grained layer in multi-media systems used in water treatment plants process . HONEST HORSE garnet filter sand provides uniform physical characters, chemical and microstructure characteristics. There are no free elements. All oxides are combined chemically as an iron-rich aluminosilicate, which has the formula: Fe3AlO3(SiO4)3. It is as polishing layer for removal of suspended solids down to 1μm, which combined with silicate sand and anthracite filter.

6. Garent Sand Quality Test and Test Equipment

----Normal packaging:25kg/pp bag, then 40 bags in one ton bag .

---1000kg in one ton bag.

Q. What is the mode of your payment?

T/T: 50% advance payment and the rest 50% payment oay us when you get the scannedB/L from our E-mail.L/C:100% irrevocable L/C at sight. Q. What's the MOQ of your product?As usual MOQ is 5TONS.Or as your require, we need to calculate the new price to you.

Product Description Product Parameters

Physical composition	shape	Angular
	specific weight	4.1g/cm3
	average bulk	2.4g/cm3
	hardness	7-8(mohs scale)
	crystal system	cubic
	habit	trapezohedron
	fracture	sub-conchoidal
	PH	6.93
Chemical composition	Al2O3	16-21%
	Fe2O3	27-32%
	SiO2	35-38%
	MgO	4.5-6%
	CaO	2-9.5%
	TiO2	1-3%
